Description

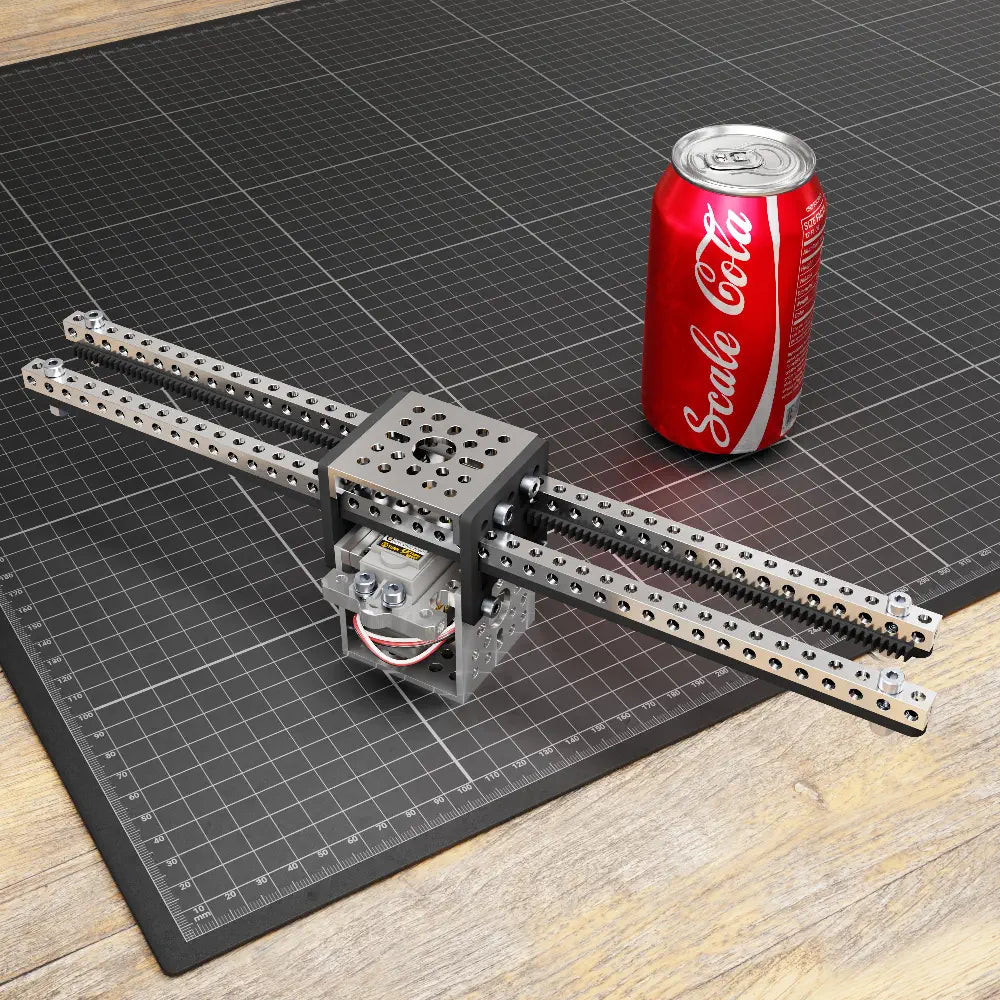

- ServoCity Servo-Driven Gear Rack Kit (12lb Thrust, 11.4 in/sec, Dual Gear Rack)
- Delivers 12lb thrust and 11.4 in/sec speed
- Features 5-Turn Dual Mode Super Speed Servo
- Offers interchangeable U-Channel structure
- Boasts compact design with versatile mounting
- Supports precision in engineering and robotics

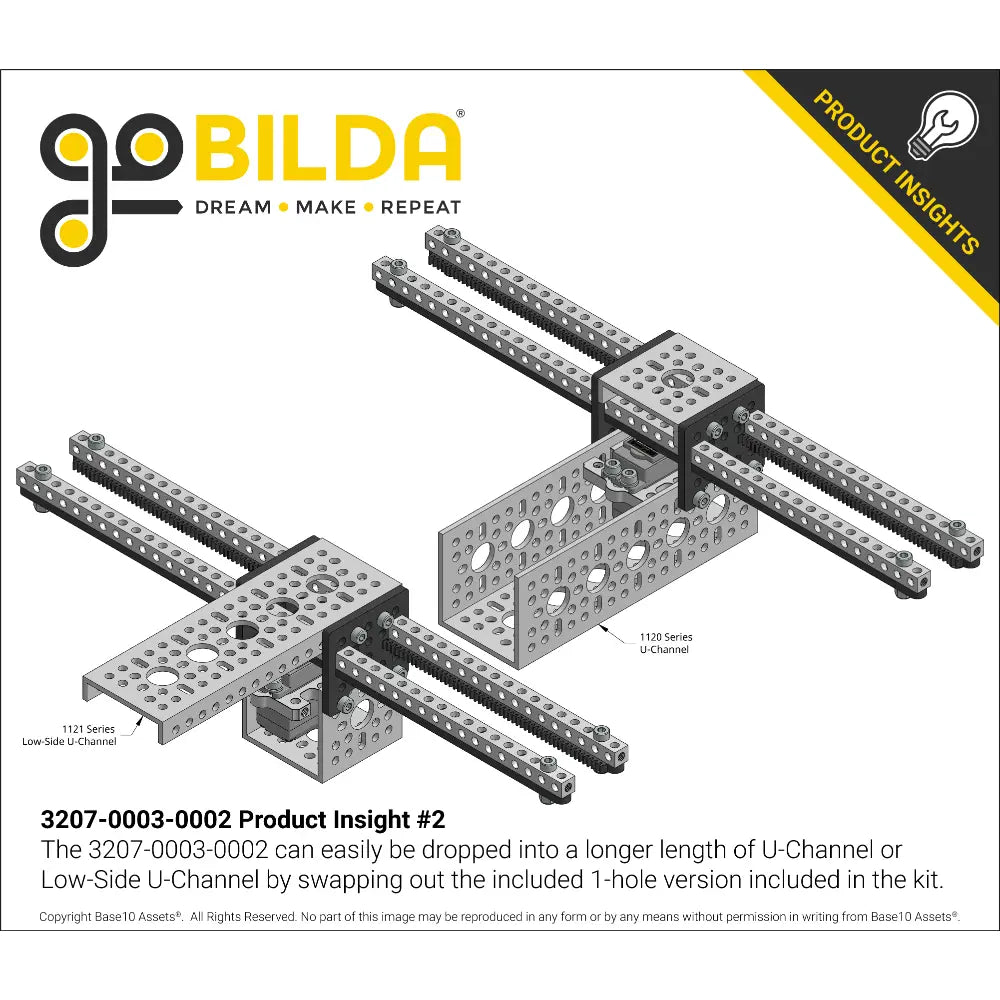

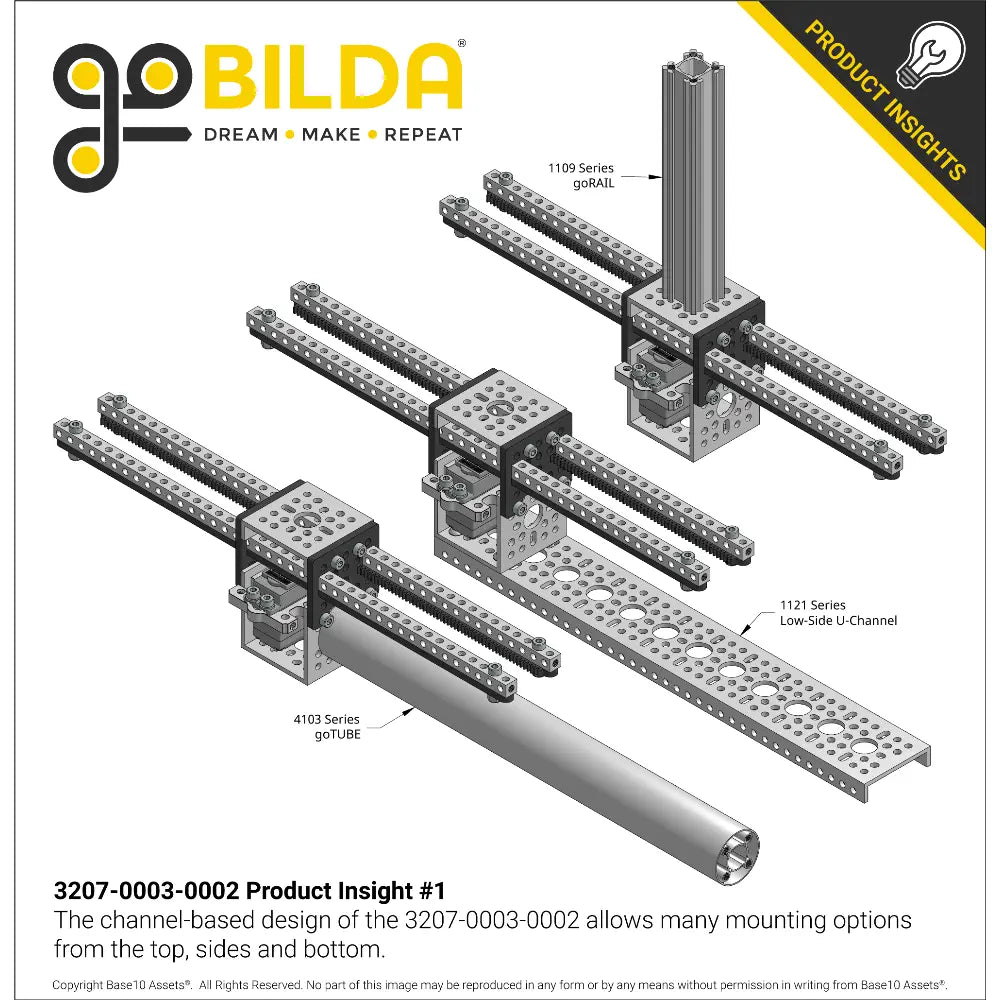

The ServoCity Servo-Driven Gear Rack Kit (12lb Thrust, 11.4 in/sec, Dual Gear Rack) is designed to facilitate linear motion through the use of a servo. This kit is notable for its compact design while delivering a substantial thrust of 12 pounds and a speed of 11.4 inches per second. It is powered by a 5-Turn Dual Mode Super Speed Servo, which is integral to achieving its performance specifications. The dual gear racks are securely attached to Square Beams, offering a wide range of attachment possibilities through threaded holes compatible with the goBILDA® 16mm linear pattern. Additionally, the U-Channel structure included in the kit provides numerous mounting options, allowing for customization and flexibility in various applications. The kit's design supports the interchangeability of channels, enabling users to replace the included channels with others from the same series to suit specific project requirements. This adaptability makes the kit suitable for diverse engineering and robotics projects, where precise and reliable linear motion is essential.
- 2x 1106 Series Square Beam (41 Hole, 328mm Length)
- 1x 1120 Series U-Channel (1 Hole, 48mm Length)
- 1x 1121 Series Low-Side U-Channel (1 Hole, 48mm Length)
- 2x 1133 Series Plastic Flat Grid Bracket (1) - 2 Pack
- 1x 1802 Series Servo Frame (43mm Width, for Standard Size Servos)
- 1x 2000 Series 5-Turn, Dual Mode Servo (25-4, Super Speed)
- 1x 2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 24 Tooth)
- 2x 2311-0001-0118 Acetal MOD 0.8 Gear Rack (118 Tooth, 41 Hole)
- 25x 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length)
- 25x 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length)
- 25x M4 x 0.7mm Nylock Nut
PDF File
- Weight: 303g (10.7oz)
- Servo Included: 2000-0025-0504
- PWM Range for Full Travel: 700 - 2300μsec
- Travel per Microsecond: 0.15 mm/μsec
- Pulse Amplitude: 3-5V
- Deadband Width: 4μsec
- Motor Type: Brushed DC
- Voltage Range: 4.8V to 7.4V
- No-Load Speed at 4.8V: 180 mm/sec (7.09 in/sec)
- No-Load Speed at 6V: 230 mm/sec (9.06 in/sec)
- No-Load Speed at 7.4V: 290 mm/sec (11.42 in/sec)
- Speed at Peak Output Power at 4.8V: 90 mm/sec (3.54 in/sec)
- Speed at Peak Output Power at 6V: 115 mm/sec (4.53 in/sec)
- Speed at Peak Output Power at 7.4V: 145 mm/sec (5.71 in/sec)
- Stall Thrust at 4.8V: 4.1kg (9.0lb)
- Stall Thrust at 6V: 4.9kg (10.8lb)
- Stall Thrust at 7.4V: 5.6kg (12.3lb)
- Thrust at Peak Output Power at 4.8V: 2.1kg (4.6lb)
- Thrust at Peak Output Power at 6V: 2.4kg (5.3lb)
- Thrust at Peak Output Power at 7.4V: 2.8kg (6.2lb)
- No-Load Current at 4.8V: 190mA
- No-Load Current at 6V: 200mA
- No-Load Current at 7.4V: 230mA
- Stall Current at 4.8V: 2000mA
- Stall Current at 6V: 2500mA
- Stall Current at 7.4V: 3000mA
- Current at Peak Output Power at 4.8V: 1000mA
- Current at Peak Output Power at 6V: 1250mA
- Current at Peak Output Power at 7.4V: 1500mA
